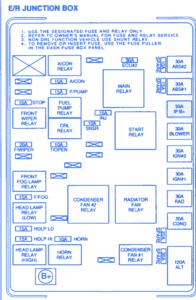

KIA Hatchback 2005 Fuse Box/Block Circuit Breaker Diagram

KIA Hatchback 2005 Fuse Box/Block Circuit Breaker Diagram



DescriptionAmpsCircuit Protected
FUSE
STOP15AStop Lamp Switch
F/WIPER20AFront Wiper Relay, Multifinction Switch, Front Wiper Motor
F/FOG15AFront Fog Lamp Relay
HDLP LO15AHead Lamp Relay (Low)
HDLP HI15AHead Lamp Relay(High), DRL Relay
A/CON10AA/Con Relay
F/Pump15AFuel Pump Relay
T/Open10ATrunk Lid Open Relay(4DR), DRL Relay
HORN10AHorn Relay
INJ15AInjector #1-#4, Idle Speed Actuator, Oil Control Valve, Purge Control Solenoid Valve, Canister Close Valve
SNSR10AOxygen Sensor, Immobilizer Control Module, Camshaft Positition Sensor, Crankshaft Position Sensor, ECM, Mass Air Flow Sensor
ECU #230AMain Relay, ECM, Multipurpose Check Connector
FUSIBLE LINK
ABS#230AABS Control Module
ABS#130AABS Control Module
IP B+50AI/P Junction Box
Blower30ABlower Relay
IGN #230AStart Relay, Ignition Switch
IGN #130AIgnition Switch
RAD30ARadioator Fan Relay
COND20ACondeser Fan #1 Relay
ALT120AGenerator

KIA Hatchback 2005 Fuse Panel/Board – Fuse Symbol Map
