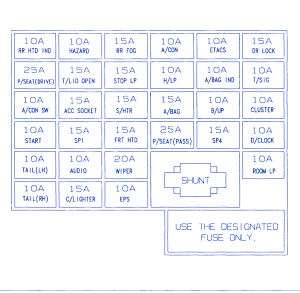

Kia Optima 2002 Fuse Box/Block Circuit Breaker Diagram

Kia Optima 2002 Fuse Box/Block Circuit Breaker Diagram



FUSE MAPAMPS
RR HTD IND10A
HAZARD10A
RR FOG15A
A/CON10A
ETACTS10A
DR LOCK15A
P/SEAT (DRIVE)25A
T/LID OPEN15A
STOP LP15A
H/LP10A
A/BAGIND10A
T/SIG10A
A/CON SW10A
ACC SOCKET15A
S/HTR15A
A/BAG15A
B/UP10A
CLUSTER10A
START10A
SP115A
FRT HTD15A
P/SEAT (PASS)25A
SP415A
D/CLOCK10A
TAIL (LH)10A
AUDIO10A
WIPER20A
ROOM LP10A
TAIL (RH)10A
C/LIGHTER15A
EPS10A

Kia Optima 2002 Fuse Panel/Board – Fuse Symbol Map
