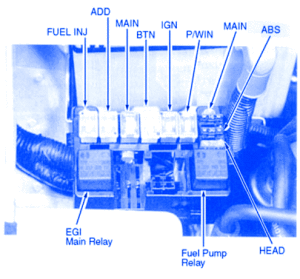

KIA Sportage EX 2009 Engine Fuse Box/Block Circuit Breaker Diagram

KIA Sportage EX 2009 Engine Fuse Box/Block Circuit Breaker Diagram



DescriptionFuse RatingProtected Component Engine Compartment Fuses
FUEL INJ30AFuel injection System
ADD30AA/C Condenser Fan
MAIN80AFor Protection of all Circuits
BTN60ABrake Lights, License Plate Lights, Dome Light, Hazard Lights
IGN30AIgnition
P/WIN40APower Windows
MAIN15AFuel Pump, Injector Main Relay, Fuel Pump Relay
ABS30AAnti-Lock Brake System
HEAD20AHeadlights

KIA Sportage EX 2009 Engine Fuse Panel/Board – Fuse Symbol Map
