Lincoln Continental 3.8-liter V6 1994 Main Fuse Box/Block Circuit Breaker Diagram

Lincoln Continental 3.8-liter V6 1994 Main Fuse Box/Block Circuit Breaker Diagram



SYMBOLAMPSCOLORCIRCUIT PROTECTED
115ALBStop Lamps, Hazard Warning Lamps, Speed Control
225AWindshield Wiper Governer, Windshield Wiper Switch and Motor, Windshield Washer Motor, Windshield Fluid Level Switch
3--Not Used
415ALBChime, Front Parking and Side Marker Lamps, Fuse Cavitiesn13 and 15, and Illumination of the following Items Cluster, Headlamp Switch, Temperature Controls, Message Center Switch, Heater Back Window Switch, Front and Rear Ash Receptacles
515ALBHeated Back Window Switch, Electronic Flasher, Steering Rate Sensor, Roof Console, Air Suspension, Day/Night Mirror, Back-Up Lamps, A/C Control Head, Cluster Control Buttons, Variable Assist Power Steering Module, Electronic Door lock Control Processor or Illuminated Entry module, Turn Signal Lamps, Cluster Illumination, Shift Interlock Solenoid
615ALBChime, Luggage Compartment Door Lock Solenoid Release, Overhead Console, Anti-Theft Alarm control Module, Reading Lamps, Daytime Display Lamps for Radio, Clock, A/C Controls, Power Window Relay, Cellular Phone

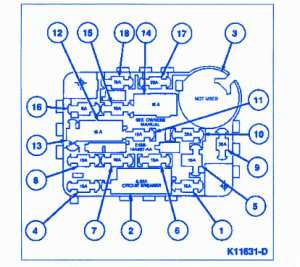

Lincoln Continental 3.8-liter V6 1994 Main Fuse Panel/Board – Fuse Symbol Map
