Mazda 6 2300L 2005 Fuse Box/Block Circuit Breaker Diagram

Mazda 6 2300L 2005 Fuse Box/Block Circuit Breaker Diagram



NOFUSE NAMEAMPS
1ENGINE IG15A
2METER IG15A
3SEAT15A
4M.DEF7.5A
5WIPER20A
6SAS15A
7BACK5A
8A/C15A
9METER ACC5A
10CIGAR15A
11ROOM15A
12--
13MIRROR5A
14R.CIGAR15A
15--
16D.LOCK30A
17--

NORELAY NAME
18FUEL PUMP (CIRCUIT)
19BLOWER

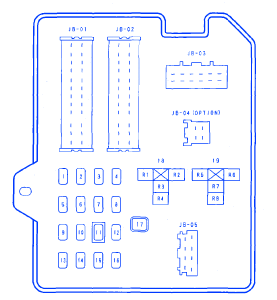

Mazda 6 2300L 2005 Fuse Panel/Board – Fuse Symbol Map
