Mazda LS Canada 1997 Battery Fuse Box/Block Circuit Breaker Diagram
| Fuse | Amps | Connected to |
|---|---|---|
| MAIN | 100A | All Fuse (Power Source, B+), Alternator |
| IG KEY | 40A | Ignition Switch |
| BTN | 60A | All Fuse (Power Source, B+) |
| (ABS) | 60A | ABS Hydraulic Unit |
| COOLING FAN | 40A | Cooling Fan Relay No.1, Cooling Fan Relay No.2 (ATX) |
| HEATER | 40A | Blower Motor Relay |
| (AIR-COND) | 40A | A/C Relay, Condenser Fan RelayNo.1-3 (KL Engine) |
| HEAD | 40A | Headlight Switch, Headlight Relay |
| EGI INJ | 30A | Alternator, EGI Main Relay, Diagnostic Module, Headlight High Relay (Canada) |
| DEFOG | 40A | Rear Window Dafroster Relay |
| TAIL | 15A | Headlight Switch, TNS Relay |
| (FOX) | 15A | Front Fog Light Switch |

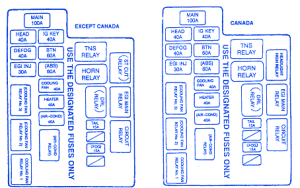

Mazda LS Canada 1997 Battery Fuse Panel/Board – Fuse Symbol Map
