| SYMBOL | DESCRIPTION |
|---|---|
| K4 | Fuel Pump Relay |
| K163 | PCM Power Relay |
| K32 | A/C Wide Open Throttlr (WOT) Relay |
| K36 | Low Beam Relay |
| K37 | High Beam Relay |
| K33 | Horn Relay |
| V7 | A/C Compressor Clutch Diode |
| V8 | Starter Relay Diode |
| K22 | Starter Relay |
| K46 | High Speed Engine Cooling Fan Relay |
| K45 | Engine Cooling Fan Relay |
| K5 | Daytime Running Lamps (DRL) Relay |

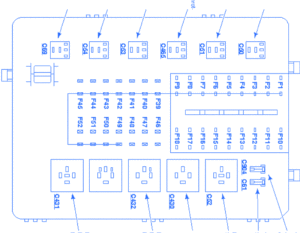

Mercury Pro XS 2011 Main Fuse Panel/Board – Fuse Symbol Map
