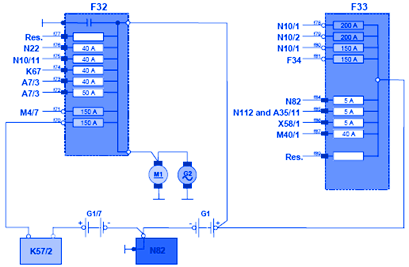

Mercy W-211 2002 Fuse Box/Block Circuit Breaker Diagram

Mercy W-211 2002 Fuse Box/Block Circuit Breaker Diagram



FUSEFUNCTION
A7/3Traction System Hydraulic Unit
A35/11Voice Recognition Module (VCS)
F32Front Pre-Fuse Box
F33Rear Pre-Fuse Box
F34Interior Fuse Box (Left of Instrument Panel)
G1System Battery
G1/7Auxiliary Battery
G2Alternator
K57/2Auxiliary Battery Relay
K67ALRmatic Relay
N10/1Driver Signal Acquisition and Actuation Module (SAM-D)
N10/2Rear Signal Acquisition and Actuation Module (SAM-R)
N10/11Passenger Signal Acquisition and Actuation Module (SAM-P)
N22Air Conditioning Control Module
N82Battery Control Module
N112Communication Platform (CP)
M1Starter Motor
M4/7Electric Suction Fan With Integrated Control
M40/1Pneumatic Pump of Dynamic Seat Control
X58/1Interior Socket

Mercy W-211 2002 Fuse Panel/Board – Fuse Symbol Map
