MG F-TF 2008 Compartment Fuse Box/Block Circuit Breaker Diagram

MG F-TF 2008 Compartment Fuse Box/Block Circuit Breaker Diagram



FuseAmperesFunction
F110AInstrument Pack, EPAS ECU, Multi-Function ECU, Hazard Warning Switch, Automatic Gearbox, Indicator Lamp, Cigar Lighter Relay, Seat Belt Switch
F210ACigar Lighter Relay
F3-Not Used
F415ARH Front Window SWitch (LHD Vehicles) Window lift ECU (RHD Vehicles)
F515AWindow Lift ECU (LHD Vehicles) LH Front Window Switch (RHD Vehicles)
F610AEngine Bay Cooling Fan Relay, Front Window Lift Relay
F710ARH Head Lamp and Tail Lamp
F810ALH Head Lamp, Header 0285 (See Header Detail for Circuit Effected), Instrument Pack
F910AMulti-Function ECU
F1010ALH Headlamp
F1110ARH Headlamp, Multi-Function ECU
F1215AClock, Radio and Cassette Player, Frontt Interior Lamp, LH Front Footwell Lamp, RH Front Footwell Lamp, Load Space Lamp, Under Bonned Lamp, Diagnostic Socket
F1315AWindscreen Wiper Motor, Windscreen Wash/Wipe Switch
F1415AAlarm ECU, Engine Management Relay Module, ECM
F1520ACooling Fan Relay(Non A/C Only) A/C Relay Pack (A/C Only), A/C Switch Pack (A/C Only)
F1615ABrake Pedal Switch
F1710ARadio/Cassette Player, Oil Temperature Gauge
F1810AHeader 0288 (See Header Details for Circuits Effected)
F1910AEngine Management Relay Module
F2015AFuses 1,13,14,25
F2110AHeader 0288 (See Header Details for Circuits Effected)
F2210ALH Headlamp
F2325AHeated Rear window Relay
F2420ABlower Motor
F2510ASRS DCU
F2610AFront Fog Lamps

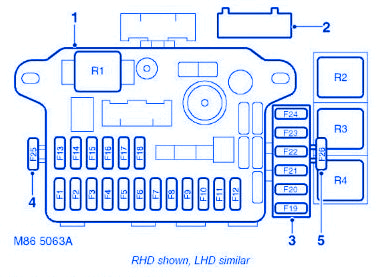

MG F-TF 2008 Compartment Fuse Panel/Board – Fuse Symbol Map
