Mitsubishi Pajero 1994 Fuse Box/Block Circuit Breaker Diagram
| Fuses Symbol | Amps | Fuse Map |
|---|---|---|
| 1 | 60A | Battery |
| 2 | 100A | Alternator |
| 3 | 20A | Multi-Point Injection |
| 4 | 40A | Ignition Switch |
| 5 | 30A | Rear Window Demister |
| 6 | 30A | Electric Window Control |
| 7 | 30A | Air Conditioner |
| 8 | 40A | Lamps |
| 9 | 10A | Air Conditioner Compressor |
| 10 | 25A | Air Conditioner Condenser |
| 11 | 10A | Tail Lamps |
| 12 | 10A | Headlight Upper Beam |
| 13 | 10A | Hazard Warning Flasher |

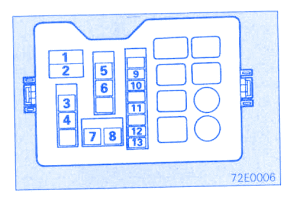

Mitsubishi Pajero 1994 Fuse Panel/Board – Fuse Symbol Map
