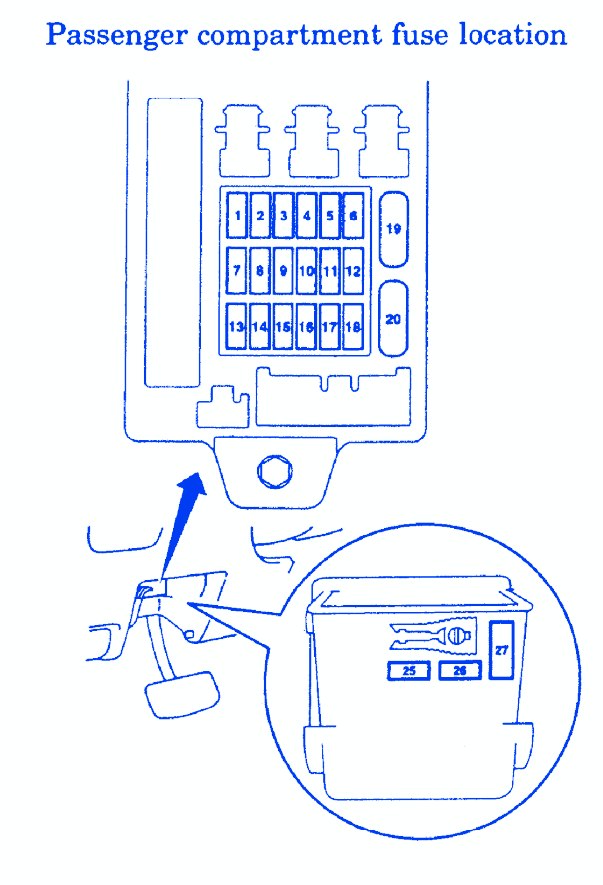

Mitsubushi Lancer 2007 Compartment Fuse Box/Block Circuit Breaker Diagram

Mitsubushi Lancer 2007 Compartment Fuse Box/Block Circuit Breaker Diagram



NoElectrical SystemCapacity
1Ignition Coil10A
2Gauge7.5A
3Back-up Lights7.5A
4Cruise Control7.5A
5Relay7.5A
6Door Mirror Heater7.5A
7Windshield Wiper20A
8Engine Control7.5A
9Cigarette Lighter15A
10--
11Outside Rearview Mirrors7.5A
12Engine Control7.5A
13Radio10A
14Rear Window Wiper15A
15Power Door Locks15A
16Rear Fog Light10A
17--
18Dome Light10A
19Heater30A
20Rear Window Defogger30A
21--
22--
23--
24--
25Spare Fuse20A
26--
27Spare Fuse30A

Mitsubushi Lancer 2007 Compartment Fuse Panel/Board – Fuse Symbol Map
