Nissan Maxim 1998 Passenger Fuse Box/Block Circuit Breaker Diagram

Nissan Maxim 1998 Passenger Fuse Box/Block Circuit Breaker Diagram

Fuse SymbolAmpsFuse Map
120ASpeaker
210AHazard Warning Light
310AExterior Lights, Illumination, Time Control Unit, Dimmer Relay
410ATime Control Unit, Clock, Power Door Mirrors, Rear Washer & Wiper Motors
520ACigarette Lighter
610AAudio, Power Antenna Timer
7-(1990-91) Blank
10A(1992-95) Air Bag Control Unit (If Equipped)
820ARear Window Defogger & Switch
920ARear Window Defogger
1010ATime Control Unit, Gauges, Warning Light, Rear Window Defogger
117.5AHeater & Air Conditioner, Theft Warning Control Unit
1220AFront Washer & Wiper Motors
1315ABlower Motor
1415ABlower Motor
1510AA/T Control Unit, Theft Warning Control Unit, Door Lock System, Auto A/C Control Amp.,Key Hole Illumination, Footlights, Audio, Clock, Warning Chime, Interior Lights, Spotlight, Power Antenna Timer
167.5AECCS Control Unit
1715APower Steering Control Unit, Anti-Lock Brake System, In-Vehicle Sensor Aspirator
1810ATurn Signal Lights
1910AA/T Control Unit, Shift Lock Control Unit, Inhibitor Switch, Cruise Control, Back-Up Light, Power Antenna Timer
207.5ASemi-Automatic Seat Belt System
21-Blank

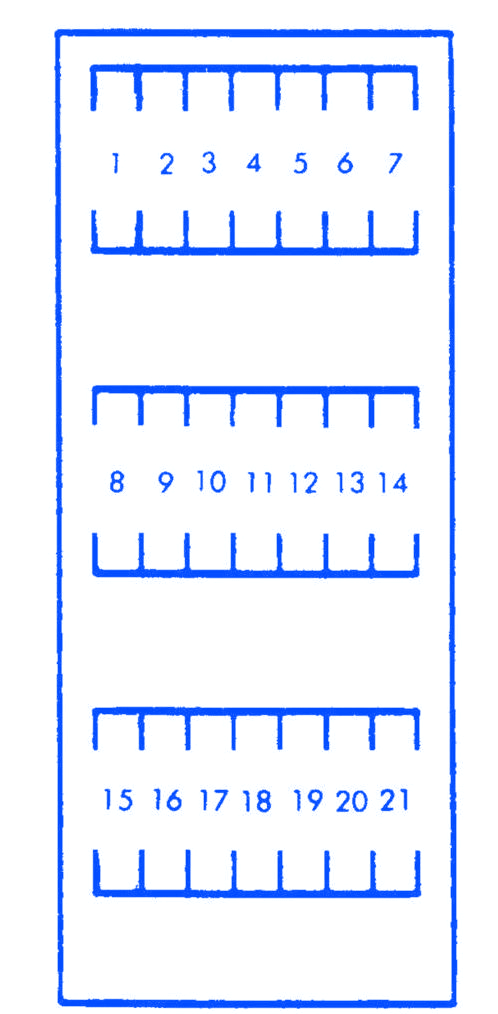

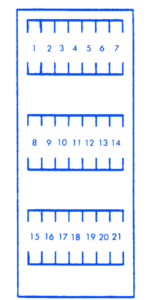

Nissan Maxim 1998 Passenger Fuse Panel/Board – Fuse Symbol Map
