Nissan Primera 1.6 Tekna 2003 Fuse Box/Block Circuit Breaker Diagram
| NO. | AMPS | FUSE | MAP |
|---|---|---|---|
| 1 | 15A | IGN | REAR BLOWER |
| 2 | 15A | IGN | REAR BLOWER |
| 3 | 10A | IGN | WASHER |
| 4 | 10A | IGN2 | HVAC |
| 5 | 15A | ACC | C/LIGHTER |
| 6 | 15A | ACC | POWER SOCKET CONSOLE |
| 7 | 10A | ACC | MIRROR |
| 8 | 10A | ACC | AUDIO |
| 9 | 10A | BAT | A/T CONT |
| 10 | 10A | ST | AUTO DRPO |
| 11 | 10A | IGN | REAR HEAT SEAT |
| 12 | 15A | BAT | INTERIOR LAMP |
| 13 | 10A | BAT | STOP LAMP |
| 14 | 10A | BAT | ADAPTIVE CRUISE CONT/CARGO L |
| 15 | 10A | BAT | ELECTRONIC PART |
| 16 | 15A | BAT | POWER SOCKET CPM |
| 17 | 15A | BAT | WOOFER/AMP |
| 18 | 10A | IGN | FRONT HEAT SEAT |
| 19 | 10A | IGN | ADAPTIVE CRUISE CONT/RR DIFF |
| 20 | 10A | IGN | METER |
| 21 | 10A | IGN | A/BAG |
| 22 | 10A | IGN | ELECTRONIC PART |

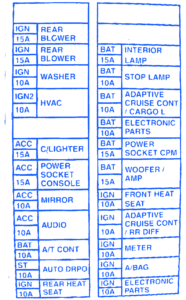

Nissan Primera 1.6 Tekna 2003 Fuse Panel/Board – Fuse Symbol Map
