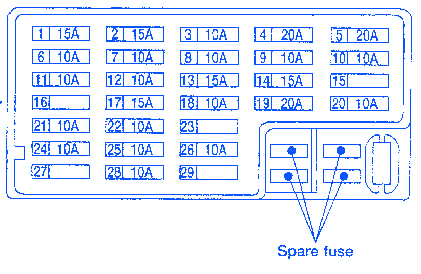

Nissan Sagea 1999 Engine Fuse Box/Block Circuit Breaker Diagram

Nissan Sagea 1999 Engine Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolRatingFuse Map
115AHeater, A/C, Blower Motor
215AHeater, A/C, Blower Motor
310AATF Floud Temperature Sensor, A/T Control Unit Power Supply (BA/FTS)(MAIN)
420ARear Window Defogger (DEF),Load Signal (LOAD)
520ARear Window Defogger (DEF),Load Signal (LOAD)
610AA/C Control Head, 1ACV-F1CD Solenoid Valve
710AFront Heated Oxygen Sensor (HO251) Front Heated Oxygen Sensor Heater (HO251H), Rear Heated Oxygen Sensor (HO252), Rear Heated Oxygen Sensor Heater, System (HO252H), Fuel System
810AMultifunction Indicator Lamp & Data Link Connectors (MIL/DL) Non Detective Item (NONDTC), Rear Window Defogger (DEF), A/C Control Head, Chime Control, Multi Remote Control System, Smart Entrance Control Unit(Theft Warning), A/T Shift Lock Brake Switch (SHIFT), Sun Roof (SROOF), Automatic Speed Control Device (ASCD), Clutch Switch, Power Windows, Load Signal (LOAD), Daytime Running Light Control Unit (DTRL)
910APower Mirror Switch
1010AAudio Unit, Multi Remote Control System, Smart Entrance Control Unit(Theft Warning), 12V Socket (CIGAR)
1110AHazard Switch & Turn Signal (TURN)
1210AVehicle Speed Sensor(V55), Vehicle Speed Sensor MTR (VSSMTR), Multifunction Indicator Lamp & Data Link Connectors (MIL/DL), Non-Detective Items (NONDTC), Anti Lock Braking System (ABS), Daytime Running Light Control Unit (DTRL), Meter & Gauges (METER), Warning Lamps (WARN), Automatic Speed Control Device (ASCD), Supplement Retraint System (SRS), Charger System (CHARGE), Park/Neutral Switch (PNP/SW), Back-Up Lamps(BACK/L), Fuel Level Sensor Circuit (FL2), Fuel Level Sensor Ground Circuit(FL3)
1320ACigarette Lighter (CIGAR)
1415AAnti Lock Braking System (ABS), Stop Lamps (STOP/L), Automatic Speed Control Device (ASCD), ATF Fluid Temperature Sensor, A/T Control unit Power Supply (BA/FTS)(MAIN)
15-Blank

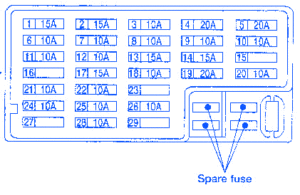

Nissan Sagea 1999 Engine Fuse Panel/Board – Fuse Symbol Map
