Oldsmobile 1993 Engine Part Electrical Circuit Wiring Diagram

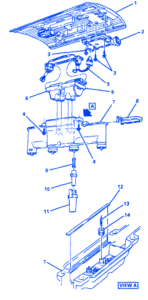

| SYMBOL | DESCRIPTION |
|---|---|
| 1 | COVER - Electronic Ignition Control Module (ICM) |
| 2 | MODULE - Electronic Ignition Control |
| 3 | BOLT/SCREW - Electronic Ignition Control Module |
| 4 | BOLT/SCREW - Ignition Coil HSG |
| 5 | HARNESS ASM - Electronic Ignition Control Module Wiring |
| 6 | COIL - Ignition |
| 7 | HOUSING ASM - Ignition Coil |
| 8 | COVER - Ignition Coil HSG |
| 9 | CONNECTOR - SPLG |
| 10 | BOOT - SPLG |
| 11 | RETAINER - SPLG BOOT |
| 12 | SPACER - Ignition Coil |
| 13 | CONTACT - Ignition Coil |
| 14 | SEAL - Ignition Coil Term |
Oldsmobile 1993 Engine Part Electrical Circuit Symbol Map
