Oldsmobile Alero 2001 Under The Dash Fuse Box/Block Circuit Breaker Diagram

Oldsmobile Alero 2001 Under The Dash Fuse Box/Block Circuit Breaker Diagram



FuseRatingDescription
CRUISE10ACruise Control module (CCM), Body Control Module (BCM) Clutch Pedal Position (CPP) Switch TCC/Brake Switch
CRUISE SW2ACruise Control On/Off Switch
CRUISE SW LPS2ACruise Control Switch Assemby Lamps (Dimming)
FOG LS10AFog Lamps Relay, Fog Lamp Switch
HVAC BLOWER20AHVAC COntrol Assembly
INST LPS10AInterior Lamps (Dimming)
INT LPS10ABody Control Module (BCM)
CIRCUIT BREAKER PWRWNDW25APower Window Switches
RADIO BATT15ARadio
SUNROOF20ASunroof Module

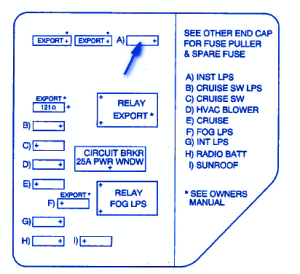

Oldsmobile Alero 2001 Under The Dash Fuse Panel/Board – Fuse Symbol Map
