Oldsmobile Alero 2004 Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | FUSE/RELAY MAP | AMPS |
|---|---|---|
| MAXI-FUSES | ||
| 1 | IGN SW-BATT2 | 30A |
| 2 | R/H BEC BATT | 30A |
| 3 | L/H BEC BATT 2 | 30A |
| 4 | ABS | 50A |
| 5 | L/H BEC BATT1 | 40A |
| 6 | UNUSED | |
| 7 | IGN SW BATT1 | 40A |
| 8 | COOL FAN #1 | 30A |
| MINI-RELAYS | ||
| 9 | RR DEFOG | |
| 10 | UNUSED | |
| 11 | STARTER | |
| 12 | COOL FAN #1 | |
| 13 | HVAC BLOWER | |
| 14 | COOL FAN #2 | |
| 15 | COOL FAN MODE | |
| MICRO-RELAYS | ||
| 16 | A/C COMP | |
| 17 | UNUSED | |
| 18 | FUEL PUMP | |
| 19 | AUTO PRK LMP CTRL | |
| 20 | AUTO HDLPC CTRL | |
| 21 | HORN | |
| 22 | DRL | |
| MINI_FUSES | ||
| 23 | SPARE FUSE HOLDER | |
| 24 | SPARE FUSE HOLDER | |
| 25 | SPARE FUSE HOLDER | |
| 26 | SPARE FUSE HOLDER | |
| 27 | SPARE FUSE HOLDER | |
| 28 | SPARE FUSE HOLDER | |
| 29 | SPARE FUSE HOLDER | |
| 30 | SPARE FUSE HOLDER | |
| 31 | SPARE FUSE HOLDER | |
| 32 | SPARE FUSE HOLDER | |
| 33 | RR DEFOG | 30A |
| 34 | AUX PWR/CIGAR | 20A |
| 35 | UNUSED | |
| 36 | UNUSED | |
| 37 | A/C BFC | 10A |
| 38 | AUTO TRANS | 10A |
| 39 | PCM IGN | 10A |
| 40 | ABS/EVO/IGN | 15A |
| 41 | IGN MOD | 10A |
| 42 | B/U LP/BTSI | 15A |
| 43 | HORN | 15A |
| 44 | PCM BATT | 10A |
| 45 | PARK LPS | 15A |
| 46 | HTR - A/C | 10A |
| 47 | ERLS | 10A |
| 48 | F/P INJR | 15A |
| 49 | GEN BATT | 10A |
| 50 | RH HDLP | 15A |
| 51 | LH HDLP | 15A |
| 52 | COOL FAN #2 | 15A |
| 53 | HI BLO MOT | 30A |
| 54 | CRANK | 10A |
| 55 | COOL FAN #2 GROUND (V6 ONLY) | 30A |
| MISC | ||
| 56 | FUSE PULLER | |
| 57 | UNUSED | |
| - | A/C COMP DIODE | |

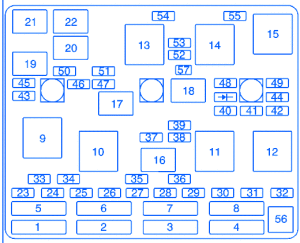

Oldsmobile Alero 2004 Fuse Panel/Board – Fuse Symbol Map
