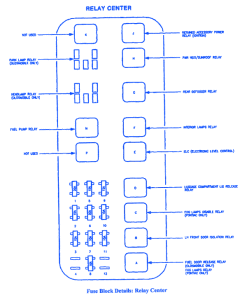

Pontiac Bonneville S.E 1995 Relay Fuse Box/Block Circuit Breaker Diagram
| Fuse/Relay Symbol | Fuse/Relay Map |
|---|---|
| A | Fuel Door Release Relay(Old Mobile Only), Fog Lamp Relay(Pontiac Only) |
| B | LH Front Door Isolation Relay |
| C | Fog Lamps Disable Relay (Pontiac Only) |
| D | Luggage Compartment Lid Release Relay |
| E | ELC (Electronic Level Control) |
| F | Interior Lamps Relay |
| G | Rear Defogger Relay |
| H | PWR Wdo/Sunroof Relay |
| J | Retaned Accessory Power Relay (IGNITION) |
| K | Not Used |
| - | Park Lamp Relay(Oldmobile Only) |
| - | Headlamp Relay (Oldmobile Only) |
| N | Fuel Pump Relay |
| P | Not Used |
Pontiac Bonneville S.E 1995 Relay Fuse Panel/Board – Fuse Symbol Map
