Pontiac G6 2011 Engine Fuse Box/Block Circuit Breaker Diagram

Pontiac G6 2011 Engine Fuse Box/Block Circuit Breaker Diagram



FuseCircuit Protected
F1Air Bag
F2Trunk Release
F3Door Locks
F4Inadvertent Power LED
F5Courtesy/Turn Signal Lamps/Front Passenger Turn Signal
F6Rear And Side Passenger Side Turn Signal
F7Spare
F8Driver Side Turn Signal
F9Body Control Module
F10Stop Lamps
F11Interior Lamps
F12Discrete Logic Ignition Sensor/Theft Deterrent System
F13Rear Cigarette Lighter
F14Auxiliary Power
F15Outside Rearview Mirrors
F16Sunroof/Automatic Transmission Shift Lock
F17Sunroof
F18Automatic Occupant Sensor
F19Driver Side Heated Seat
F20Passenger Side Heated Seat
F21Daytime Running Lamps
F22Front Cigarette Lighter
F23Steering Wheel Controls Backlighting
F24Power Window
Fuse PullerFuse Puller
B1Spare
B2Power Window
B3Power Seats
B4Spare
R1Retain Accessory Power 1
R2Door Locks
R3Passenger Side Door Lock
R4Spare
R5Trunk Release
R6Driver Side Lock
R7Retain Accessory Power 2
R8Accessory
R9Blower
R10Spare
R11Daytime Running Lamps
R12Fuel Pump

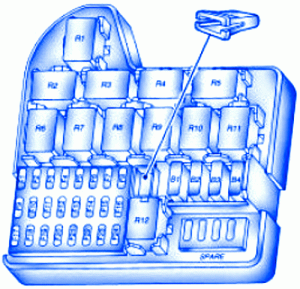

Pontiac G6 2011 Engine Fuse Panel/Board – Fuse Symbol Map
