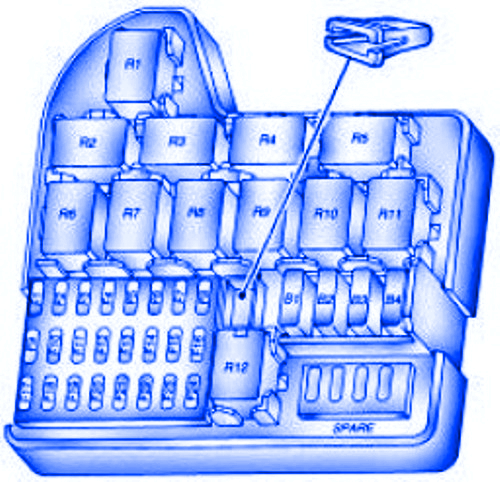

Pontiac G8 2006 Main Engine Fuse Box/Block Circuit Breaker Diagram

Pontiac G8 2006 Main Engine Fuse Box/Block Circuit Breaker Diagram



FuseCircuit Protected
F1Air Bag
F2Trunk Release
F3Door Locks
F4Inadvertent Power LED
F5Courtesy/Turn Signal Lamps/Front Passenger Turn Signal
F6Rear And Side Passenger Side Turn Signal
F7Spare
F8Driver Side Turn Signal
F9Body Control Module
F10Stop Lamps
F11Interior Lamps
F12Discrete Logic Ignition Sensor/Theft Deterrent System
F13Rear Cigarette Lighter
F14Auxiliary Power
F15Outside Rearview Mirrors
F16Sunroof/Automatic Transmission Shift Lock
F17Sunroof
F18Automatic Occupant Sensor
F19Driver Side Heated Seat
F20Passenger Side Heated Seat
F21Daytime Running Lamps
F22Front Cigarette Lighter
F23Steering Wheel Controls Backlighting
F24Power Window
Fuse PullerFuse Puller

Pontiac G8 2006 Main Engine Fuse Panel/Board – Fuse Symbol Map
