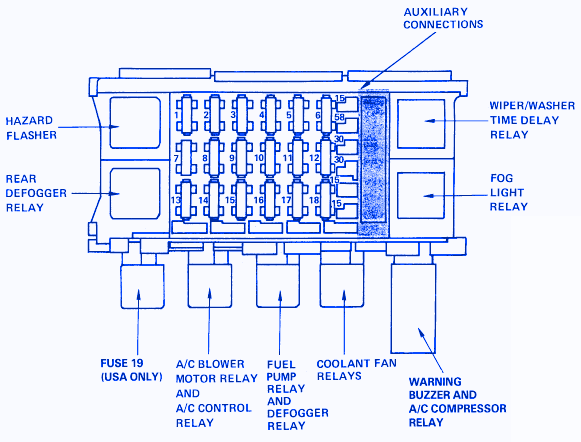

FUSE/RELAY MAP
-HAZARD FLASHER
-REAR DEFOGGERR RELAY
-FUSE 19 (USA ONLY)
-A/C BLOWER MOTOR RELAY AND A/C CONTROL RELAY
-FUEL PUMP RELAY AND DEFOGGER RELAY
-COOLANT FAN RELAYS
-WIPER/WASHER TIME DELAY RELAY
-FOG LIGHT RELAY
-WARNING BUZZER AND A/C COMPRESSOR RELAY
