Range Rover Classic 3.9L 1992 Fuse Box/Block Circuit Breaker Diagram

Range Rover Classic 3.9L 1992 Fuse Box/Block Circuit Breaker Diagram

Fuse No.ColourRatingFunction
A1Red10ALH Low Beam
A2Red10ALH High Beam, Auxilliary Lamp Relay
A3Tan5ALH Parking Lamps, Radio Ill, Trailer Pickup
A4--Not Used
A5Yellow20ADirection Ind, Resistor, Heated Jets, Thermo, Heated Front Screen Timer, Air Con, Low Coolant, Low Oil, Speed Transducer, Interior Lamp Delay, Reverse Lights, Stop Lights, Audible Warning Unit
A6Red10AFog Lamps (From Low Beam)
A7Tan5ARH Parking Lamps, Rheastat Controlled Instrument/Switch Illumination, Trailer Pickup
A8Red10ARH High Beam
A9Red10ARH Low Beam
B1Yellow20AFront Wash/Wipe, Seat Relays, Window Lift Relays, Antenna Amplifier
B2Yellow20AInterior Light, Clock, Underhood Ill., Elec Seat Relays, radio, Door Lamps, Key In Switch, Audible Warning
B3Yellow20AHazard Switch, Alarm, Headlamp Dip/Flash, Horns
B4Yellow20ACigar Lighters
B5Yellow20ASunroof Motor
B6Yellow20AHeadlamp Wash
B7Tan5AAir Conditioning Compressor Clutch
B8Yellow20AAir Conditioning/Radiator Cooling Fan
B9Yellow20AAir Conditioning/Radiator Cooling Fan
C1Green30AHeated Rear Screen (Voltage Switch Controlled)
C2Green30AWindow Lift Rear
C3Red10ARear Wash Wipe Motor, Heated Rear Screen Relay, Mirror Heaters
C4Red10AFuel Pump
C5Red10AMirror Motors, Cruise Control
C6--Not Used
C7Blue15ACentral Locking
C8Green30AWindow Lift Front
C9Green30AHeater/Air Conditioning Motor

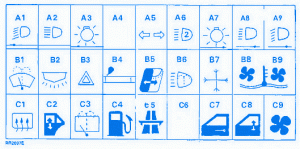

Range Rover Classic 3.9L 1992 Fuse Panel/Board – Fuse Symbol Map
