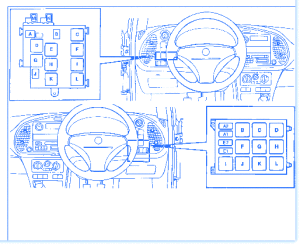

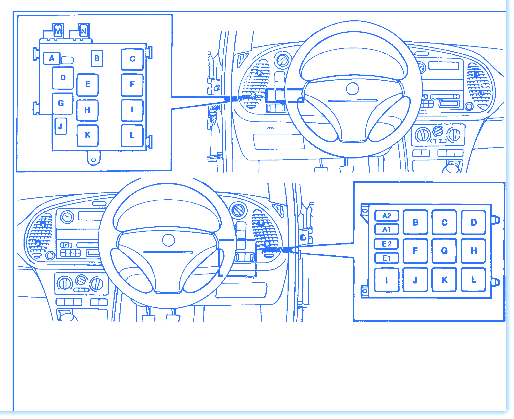

Saab 900 S 1997 Fuse Box/Block Circuit Breaker Diagram
| LHD | RHD | Function (Component Number) |
|---|---|---|
| A | E2 | Relay, Rear Fog Light Disconnection(246) |
| B | - | Relay, Reversing Light (405) |
| C | B | Shift Lock Relay (437) |
| D | K | Intermittent Wiper Operation Relay, Rear Window(83A) |
| E | H | Relay, Ignition Switch(21) |
| F | C | Relay, EXH Warning (416) |
| G | L | Relay, Intermittent Windscreen Wiper Operation (83) |
| H | G | Relay, Electrically Heated Rear window(113) |
| I | F | Fuel Pump Relay (102) |
| J | A | Relay, Washer Fluid Pump (432) |
| K | D | Starter Relay (517) |
| L | J | Main Relay, Engine Management System (229) |
| N | E1 | Relay, Electrically Heated Rear Seat (511) |
Saab 900 S 1997 Fuse Panel/Board – Fuse Symbol Map
