Saturn ION 2006 Fuse Box/Block Circuit Breaker Diagram

Saturn ION 2006 Fuse Box/Block Circuit Breaker Diagram



SYMBOLDESCRIPTIONAMPS
MINI FUSES
1TCM10A
2--
3--
4RH HDLP15A
5A/C10A
6--
7--
8ABS10A
9ECM/ETC15A
10EMISS15A
11IGN10A
12--
13TRANS210A
14TRANS110A
15BACK UP10A
16INJECTORS10A
17FOG LP10A
18LH HDLP15A
19WIPER25A
20HORN10A
21RADIO20A
22ABS20A
23RR DEFOG30A
MICRO RELAYS
24A/C CLUTCH
25HORN
26FOG LAMP
27AIR SOLENOID
29POWERTRAIN
MINI RELAYS
26RUNK/CRANK(IGN 1)
30COOLING FAN
31ECM CONT
32WIPER 1
33WIPER 2
34REAR DEFOG
DIODES
35A/C DIODE
36--
37WIPER DIODE
J-CASE FUSES
38RUNK/CRANK30A
39IP BATT 130A
40ABS40A
41IP BATT 240A
42--
43EPS60A
44AIR PUMP RLY50A
45COOLING FAN30A
46CRANK30A
47IP BATT 1A30A
48RUN (IGN3)30A
49FUSE PULLER

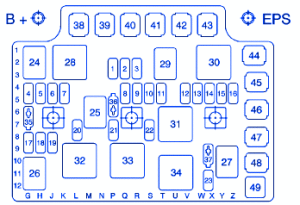

Saturn ION 2006 Fuse Panel/Board – Fuse Symbol Map
