Suzuki Aerio 2003 Dash Fuse Box/Block Circuit Breaker Diagram
| Symbol | Color | Amps | Fuse Name | Protected Circuit |
|---|---|---|---|---|
| 12 | RED | 10A | HEATER | Air Conditioning, Mirror Heater Switch |
| 13 | BLANK | - | - | - |
| 14 | YELLOW | 20A | REAR DEFOG | Rear Defroster |
| 15 | BLUE | 15A | RADIO DOME | Fuel Injection Controller, Dome Light, Spot Light, Luggage Compartment Light, Radio, A/T Controller |
| 16 | BLANK | - | - | - |
| 17 | RED | 10A | HAZARD | Hazard Light, Keyless Entry |
| 18 | BLANK | - | - | - |
| 19 | RED | 10A | TAIL | Parking Marker Light (Front & Rear), License Plate Light |
| 20 | YELLOW | 20A | DOOR LOCK | Door Lock Control |
| 21 | BLANK | - | - | - |
| 22 | BLUE | 15A | AIR BAG | Air Bag |

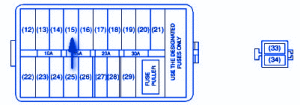

Suzuki Aerio 2003 Dash Fuse Panel/Board – Fuse Symbol Map
