Suzuki Sidekick SUV 1996 Front Fuse Box/Block Circuit Breaker Diagram

Suzuki Sidekick SUV 1996 Front Fuse Box/Block Circuit Breaker Diagram

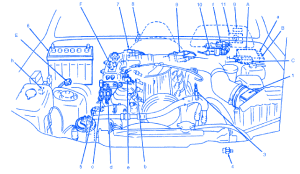

SymbolDescription
Information Sensor
1Mass Airflow Sensor
2Not Used
3Heated Oxygen Sensor
4Power Steering Pressure Switch
5Engine Coolant Temperature Sensor
6Battery
7Throttle Position Sensor
8Shift Switch (A/T)
9Cam Position Sensor (In Distributor)
10Ignition Coil
11Vehicle Speed Sensor
Controlled Devices
aFuel Pump Relay
bFuel Injector
cEGR Solenoid Vacuum Valve
dEVAP Solenoid Purge Valve
eIdle Speed Control (ISC) Solenoid
fIgnitor
gMalfunction Indicator Light (ML)
hOxygen Sensor Heater Relay
Other
AEngine Control Module (ECM)
BMain Relay
CFuse Block (Passenger Comp)
EDLC Engine Monitor Connector

Suzuki Sidekick SUV 1996 Front Fuse Panel/Board – Fuse Symbol Map
