Toyota Camry FE 1993 Engine Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Fuse Map | Amps |
|---|---|---|
| MEDIUM CURRENT FUSES | ||
| 1 | MAIN | 40A |
| 2 | RDI | 30A |
| 3 | CDS | 30A |
| FUSES | ||
| 4 | - | - |
| 5 | EFI | 15A |
| 6 | HORN | 10A |
| 7 | OBD, TRAC | 7.5A |
| 8 | HAZ | 10A |
| 9 | DOME | 20A |
| 10 | H-LP LH | 15A |
| 11 | H-LP RH | 15A |
| 12 | ALT | 7.5A |
| 13 | AMZ | 30A |
| 14 | ECU-B | 15A |
| 15 | D.C | |
| C | SHORT | |
| RELAYS | ||
| A | EFI RELAY | |
| B | STARTER RELAY | |
| C | HORN RELAY | |
| D | HEAD (Headlight Control) RELAY | |
| E | ENG MAI | |
| N | FR-DEF RELAY | |
| F | FAN RELAY | |

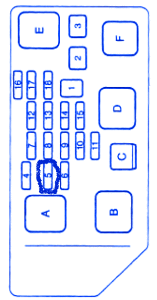

Toyota Camry FE 1993 Engine Fuse Panel/Board – Fuse Symbol Map
