Vauxhall Corsa Interior 2002 Fuse Box/Block Circuit Breaker Diagram

Vauxhall Corsa Interior 2002 Fuse Box/Block Circuit Breaker Diagram

No.CircuitRating
1-
2Fan, Heated Front Seats30A
3Heated Rear Window40A
4--
5--
6Dipped Beam (right) Headlamp Range Adjustmet10A
7Parking and Tail Lamps (Right) Number Plate Lam10A
8Main Beam Right10A
9Headlamp Wash System30A
10Horn15A
11Central Locking System20A
12Fog Lamps15A
13Information Display7.5A
14Windscreen Wipers30A
15Electrically Operated Windows, Sun Roof, Electrically Adjustable exterior Mirrors7.5A
16Fig TAil Lamp10A
17Eletrically Operated Windows30A
18Headlamp Range Adjustment7.5A
19--
20Electrically Operated Windows30A
21Ignition Lock, Anti-Theft Alarm System, Radio7.5A
22Hazard Warning Flashers, Information Display, Trip Computer, Control Indicators15A
23ABS, Power Steering10A

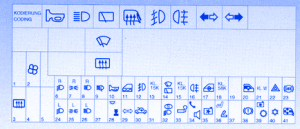

Vauxhall Corsa Interior 2002 Fuse Panel/Board – Fuse Symbol Map
