Volkswagen Cabrio 2005 Primary Fuse Box/Block Circuit Breaker Diagram

Volkswagen Cabrio 2005 Primary Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolAmpsColorFuse Map
110ARedLeft Headlight Low Beam
210ARedRight Headlight Low Beam
310ARedInstrument & License Lights
415ABlueRear Window Wiper
515ABlueWindshield Wiper/Washer Rear Washer
620AYellowA/C, Fresh Air Fan
710ARedRight Tail Light & Side Marker Light
810ARedLeft Tail Light & Side Marker Light
920AYellowRear Window Defroster, Mirror Heater
1015ABlueFog Lamps
1110ARedLeft Headlight High Beam & High Beam Indicator
1210ARedRight Headlight High Beam
1310ARedHorn, Radiator Fan Run-On
1415ABlueBack Lights (M/T), Power Mirrors, Heated Front Seats, Heated Windshield Washer Jets, Cruise Control (M/T)
1510ARedEngine Electronics, Coolant Pump Run-On (V6 Models)
1615ABlueWarning Indicator Lights, Glove Box Light, Cassette Storage Light, Shift Patern Illumination (A/T)
1710ARedTurn Signals
1820AYellowFuel Pump, Oxygen Sensor

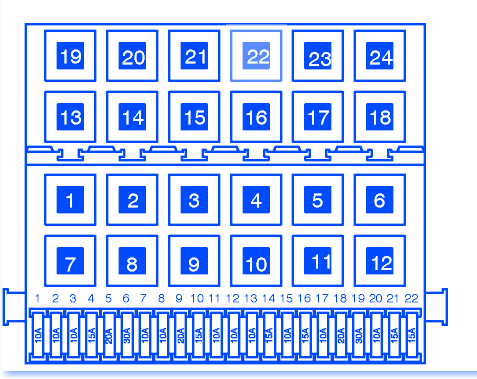

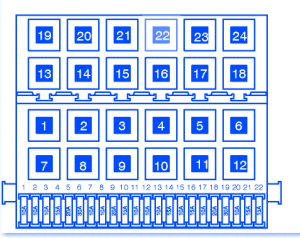

Volkswagen Cabrio 2005 Primary Fuse Panel/Board – Fuse Symbol Map
