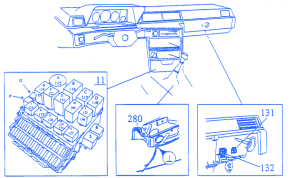

Volvo 760 Gle 1985 Front Fuse Box/Block Circuit Breaker Diagram

Volvo 760 Gle 1985 Front Fuse Box/Block Circuit Breaker Diagram



Relay SymbolRelay Map
ABuld Failure Warning Sensor (115)
BSeat Belt Reminder (116)
CWindscreen Wiper Intermitlent Relay (117)
DTailgate Wiper Intermitlent Relay (118)
ELH Jetronic Relay (135)
FExhause Gas Temperature Warning, Japan (122)
GFlasher Device (121)
HGear Shift Indicator (295)
IOverdrive Relay(123)(136)
JRelay, Power Windows and Electric Cooling Fan(124)
KHeadlight Relay (137)
LCentral Lock (125)
MRelay, Auxiliary Lights(127)

Volvo 760 Gle 1985 Front Fuse Panel/Board – Fuse Symbol Map
