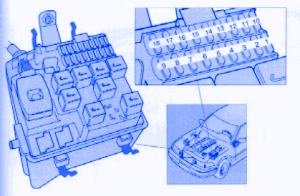

Volvo 960 1998 Frnt Engine Fuse Box/Block Circuit Breaker Diagram

Volvo 960 1998 Frnt Engine Fuse Box/Block Circuit Breaker Diagram



LocationComponentsAmperage
1Engine Control Module, Automatic Transmission Control Module5A
2A/C Relay5A
3Relay, Air Pump, Heated Oxygen Sensor15A
4Fuel Pump15A
5Fuel Injection, Mass Air Flow (MAF) Sensor, Idlle Air Control System, Engine Control Module15A
6Automatic Transmission Control Module15A
7Ignition Coil25A
8Foglights25A
9Spare-
10Positioning/Parking Lights, Left15A
11Positioning/Parking Lights, Right15A
12Left High Beam15A
13Right High Beam, Instrument Panel15A
14Left Low Beam15A
15Right Low Beam15A
16A/C Compressor15A
17Horn15A
18Accessories (See Resprective Accesories Instructions)15A

Volvo 960 1998 Frnt Engine Fuse Panel/Board – Fuse Symbol Map
