Volvo S40 Luxury Sedan 2013 Fuse Box/Block Circuit Breaker Diagram

Volvo S40 Luxury Sedan 2013 Fuse Box/Block Circuit Breaker Diagram



No.Fuse FunctionA
F43Audio Module (AUM), RTI Display, Phone Module (PHM), Multimedia Module (MMM)15A
F44Suplemental Restraint System Module (SRS)10A
F45Front 12V Outlet, Rear 12V Outlet15A
F46Light Switch Module (LSM), Driver Information Module (DIM), Lamp Housing Front Left, Lamp Housing Front Right, Glove Compartment Lighting, Courtesy Lighting Left, Courtesy Lighting Right5A
F47Ceiling Light, Rear Reading Light, Vanity Mirror Lighting Left, Vanity Mirror Lighting Right5A
F48Relay Rear Window Wiper, Relay Windshield Washer Motor, Relay Rear Window Washer Motor, Washer Pump, Washer Pump, Rear Window Wiper Motor15A
F49Suplemental Restraint System Module (SRS),, Occupant Weight Sensor (OWS), USA/CDN10A

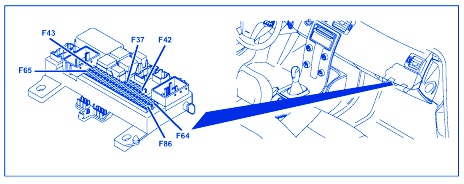

Volvo S40 Luxury Sedan 2013 Fuse Panel/Board – Fuse Symbol Map
