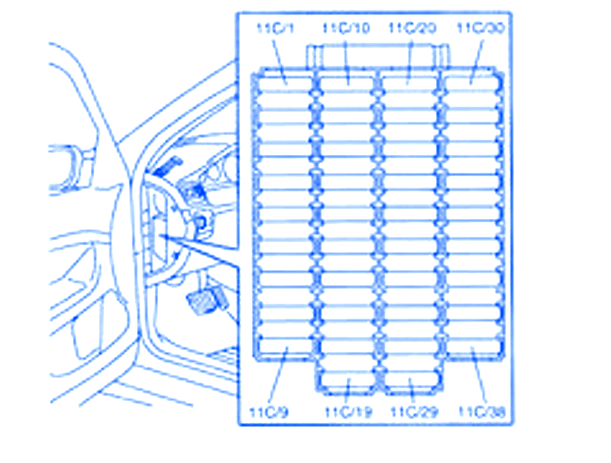

Volvo S80 2.5T Sedan 4D 2005 Dash Fuse Box/Block Circuit Breaker Diagram

Volvo S80 2.5T Sedan 4D 2005 Dash Fuse Box/Block Circuit Breaker Diagram

&nbsp

Fuse SymbolFuse MapAmps
1LH Front Lamp Housing 10/110A
2RH Front Lamp Housing 10/210A
3Low Beam Relay 2/6215A
4High Beam Relay 2/6320A
5Power Seat Module(PSM), Driver's Side 4/5230A
6Power Seat Module(PSM), Passenger Side 3/2730A
7LH Seat Heater 9/1215A
8RH Seat Heater 9/1315A
9ABS Control Module 4/16, Control Module, Steering Wheel Angle Sensor 4/685A
10LH High Beam 10/6815A
11RH High Beam 10/6415A
12RH/LH Headlight Wiper Motor 6/3-4, LH/RH Beam Adjustment Actuator 6/38-3915A
13Cigarette Lighter 12V Outlet Front 9/1, Cigarette Lighter 12V Outlet Rear 9/2520A
14Seat Belt Lock Switch, LH Seat 3/93, Seat Belt Lock Switch RH Seat 3/94, Power Seat Module (PSM) Passenger Side 3/27, Central Electronic Module (CEM) 4/56, SRS Control Module 4/95A
15Radio 16/1 , RT Display 16/465A

Volvo S80 2.5T Sedan 4D 2005 Dash Fuse Panel/Board – Fuse Symbol Map
