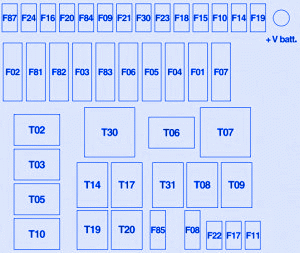

Abarth 500 2008 Engine Compartment Fuse Box/Block Circuit Breaker Diagram
| FUSE SYMBOL | FUSE MAP | AMPS |
|---|---|---|
| F08 | Climate Control System Fan | 30A |
| F09 | Spare | 15A |
| F10 | Buzeers | 15A |
| F11 | Engine Control System (Seconddary Loads) | 10A |
| F14 | Main Headlights | 15A |
| F15 | Sunroof Motor | 20A |
| F16 | +15 Engine Control Unit, Relay Coil T20 | 7.5A |
| F17 | Engine Control Unit | 10A |
| F18 | Spare | 7.5A |
| F19 | Conditioner Compressor | 7.5A |
| F20 | Heated Rear Window, Mirror Demisters | 30A |
| F21 | Fuel Pump | 15A |
| F22 | Ignition Coil | 15A |
| F23 | Braking System (Control Unit, valves) | 20A |
| F24 | +15 Braking System, Electrical Driving, Yaw Sensor | 7.5A |
| F30 | Fog Headlights | 15A |
| F84 | Spare | 10A |
| F85 | Front Socket (With or Without Cigar Lighter Plug) | 15A |
| F87 | +15 For backing Lights, T02,T05,T14 and T19 Relay Coils | 7.5A |
| DESCRIPTION | RELAY |
|---|---|
| Main Headlights | T02 |
| Buzzers | T03 |
| Conditioner Compressor | T05 |
| One-Speed Engine Cooling Fan-Low Speed Engine Cooling Fan | T06 |
| High-Speed Engine Cooling Fan | T07 |
| Climate Control System Fan | T08 |
| Engine Control System (Main Relay) | T09 |
| Spare | T10 |
| Fog Headlights | T14 |
| Fuel Pump | T17 |
| Demisting | T19 |
| Spare | T20 |
| Spare | T30 |
| Front Socker (With or Without Cigar Lighter Plug) | T51 |
Abarth 500 2008 Engine Compartment Fuse Panel/Board – Fuse Symbol Map
