Acura ILX 2007 Main Fuse Box/Block Circuit Breaker Diagram
| No. | Amps | Circuits Protected |
|---|---|---|
| 1 | 40A | ABS Motor |
| 2 | 20A | ABS B1 |
| 3 | 15A | ABS B2 |
| 4 | 10A | ABS Unit |
| 1 | 10A/20A*1 | Radio |
| 2 | 7.5A | Daytime Running Lights (Canadian Cars Only) |
| 3 | 7.5A | Starter Signal |
| 4 | 7.5A | Heater Control, A/C Cloutch an Cooling Fan Relays |
| 5 | 7.5A | Power Mirrors, Mirror Heaters |
| 6 | 30A | Spare Fuse |
| 7 | 7.5A | Turn Signals |
| 8 | 10A | Spare Fuse |
| 9 | 30A | Wiper Washer |
| 10 | 15A | Ignition Coil |
| 11 | 7.5A | ECU, Cruise Control, Fan Timer |
| 12 | 20A | Spare Fuse |
| 13 | 7.5A | Spare Fuse |
| 14 | 10A | SRS |
| 15 | 15A | Fuel Pump |
| 16 | 10A | Back-Up Lights, Meter Lights, Clock, Security |
| 17 | 15A | Spare Fuse |

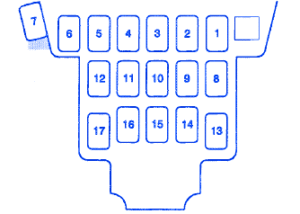

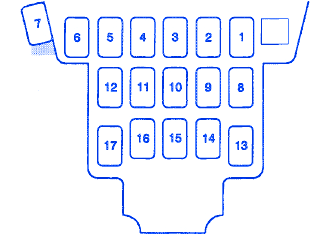

Acura ILX 2007 Main Fuse Panel/Board – Fuse Symbol Map
