Acura RL V6 225Hp 2006 Fuse Box/Block Circuit Breaker Diagram

Acura RL V6 225Hp 2006 Fuse Box/Block Circuit Breaker Diagram



Fuse NumberFuse NameAMPSComponent or Circuit Protected
22SRS10ASRS Unit
23IGP7.5ARadiator Fan Relay
24P/W RR-L20ALeft Rear Power Window Switch
25ETS(TELESCOPIC)20AETS Unit
26ETS(TILT)20AETS Unit
27P/W DR30ADriver's MPCS Unit
28SUN ROOF20AMoonroof Control Unit
29AFS7.5AHeadlight Adjuster Control Unit, SH-AWD Control Unit
30IG A/C7.5AA/C Compressor Clutch Relay, Blower Motor Relay, Climate Control Unit, In-Car Temperature Sensor, Rear Window Defogger Relay, seat Heater Relay, MICU
31IG S-AWD-Not Used
32ACC10AActive Noise Control Unit, Audio Unit, Hands Free Link Control Unit, Display Panel Control Unit, Ignition Knob ECU, Navigation Unit, On Star Control Unit, Accessory Power Sockets Relay, MICU
33Option-Not Used

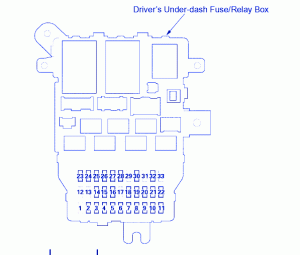

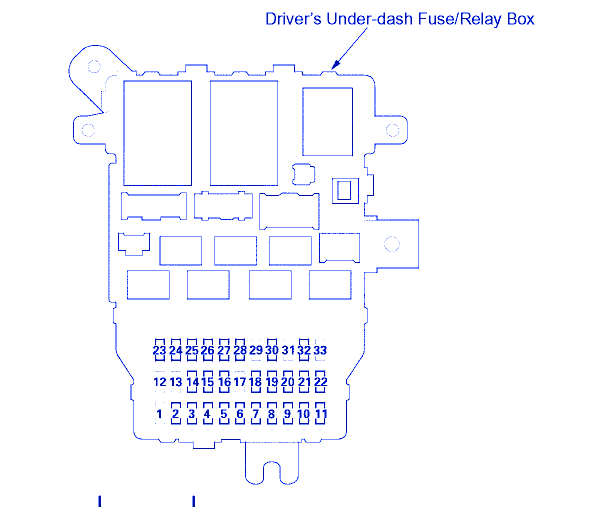

Acura RL V6 225Hp 2006 Fuse Panel/Board – Fuse Symbol Map
