Acura ZDX 1996 Under Dash Fuse Box/Block Circuit Breaker Diagram
| Symbol | Description |
|---|---|
| C901 | Ignition Switch |
| C506 | Dashboard Wire Harness |
| C505 | Dashboard Wire Harness |
| C320 | Main Wire Harness |
| C319 | Main Wire Harness |
| C651 | Roof Wires |
| C907 | Starter Cut Relay |
| C908 | Power Window Relay |
| C315 | Main Wire Harness |
| C910 | Turn Signal/Hazzard Relay |
| C317 | Main Wire Harness |
| C318 | Main Wire Harness |
| C316 | Main Wire Harness |
| C801 | SRS Main Wire Harness |
| C189 | Engine Compartment Wire Harness |
| C191 | Engine Compartment Wire Harness |
| C190 | Engine Compartment Wire harness |
| C922 | Option ACC |

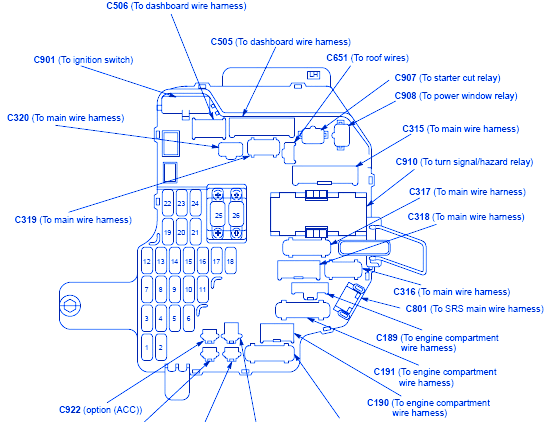

Acura ZDX 1996 Under Dash Fuse Panel/Board – Fuse Symbol Map
