Alfa Romeo SZ 1996 Mini Fuse Box/Block Circuit Breaker Diagram
| FUSE | AMP | CIRCUITS PROTECTED |
|---|---|---|
| 1 | 25A | Power Windows-Two-Point Motorized Safety Belts (Pasive Restraints) |
| 2 | 20A | Rear Fog Lamp Device - Map Reading Lamp |
| 3 | 20A | Heated Rear Window |
| 4 | 7.5A | Digital Clock, Power Mirrors Courtesy Lights, Stop Lights |
| 5 | 7.5A | Radio (if Fitted), Direction Indicator and Hazard Light Relay |
| 6 | 10A | Windshield Wiper Motor, Washer Pump |
| 7 | 10A | Back-Up Lights, Cigar Lighter, Speedometer, Ventilation Electric Fan |
| 8 | 7.5A | Power Window Relay, Heated Rear Window Relay, Instrument Warning Lights |
| 9 | 7.5A | R.H Front Parking Light, L.H Rear Parking and Stop Lights, Engine Compartment Lights |
| 10 | 7.5A | L.H Front Parking Light, R.H Rear Parking and Stop Lights, Baggage Compartment Light |
| 11 | 7.5A | L.H low Beam Headlamp |
| 12 | 7.5A | R.H Low Beam Headlamp |
| 13 | 7.5A | L.H High Beam Headlamp |

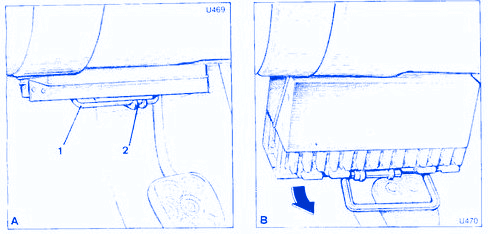

Alfa Romeo SZ 1996 Mini Fuse Panel/Board – Fuse Symbol Map
