Aston Martin Lagonda 1987 Under Bonnet Fuse Box / Block Circuit Breaker Diagram
Aston Martin Lagonda 1987 Under Bonnet Fuse Box / Block Circuit Breaker Diagram
Numer Function Ampere rating (A) 1 LH Main beam 10A 2 LH Inner main beam 10A 3 RH Main beam 10A 4 RH Inner main beam 10A 5 Spot lamps 15A 6 Front fog lamp 15A 7 Engine fans high 20A 8 Engine fans low 15A 9 Front A/C Unit 25A 10 Rear A/C Unit 15A 11 Alternator, Ignition 3A 12 Lamp wash motor 25A 13 Door locks 15A 14 Horns 20A 15 Inhibit relay, interior lamps 10A 16 HR Screen 20A 17 Cigar Lighter 15A 18 Spare 10A 19 Spare 15A 20 Spare 25A
SYMBOL FUNCTION R1 Air / Cond R2 Inner H Lamps R3 Fog lamps R4 Front W Lift R5 Starter motor R6 H/R Screen R7 Rear W Lift R8 Spare R9 Spot lamps R10 Speed lock

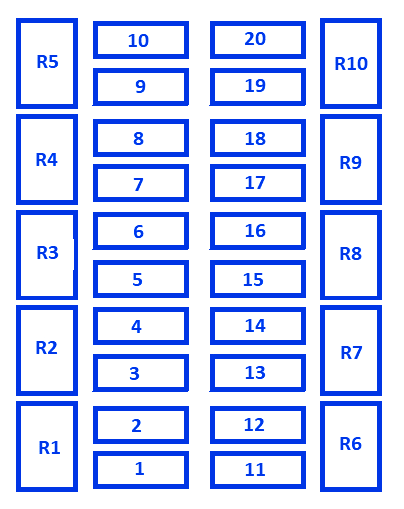

Aston Martin Lagonda 1987 Under Bonnet Fuse Panel / Board – Fuse Symbol Map
