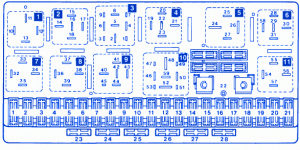

Audi 100 2.0 Sedan 1991 Fuse Box/Block Circuit Breaker Diagram
| Symbol | Description |
|---|---|
| 1 | Fog Light, J5 |
| 2 | Open |
| 3 | Radiator Cooling Fan After-Run Control Unit, J138 |
| 4 | Headlight Washer System, J39 |
| 5 | Load Reduction Relay, J18 |
| 6 | Radiator Cooling Fan High Speed Relay, J101 |
| 7 | Horn, J4 |
| 8 | Bridge Between Contact 36 and 38 for Manual Transmissions |
| 8 | Auto Transmission, J60 |
| 9 | Intermittent Washer/Wiper, J31 |
| 10 | Fuel Pump, J17 |
| 11 | Radiator Cooling Fan Low Speed Relay, J26 |
Audi 100 2.0 Sedan 1991 Fuse Panel/Board – Fuse Symbol Map
