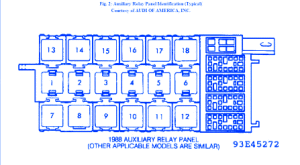

Audi 90 1988 Auxiliary Fuse Box/Block Circuit Breaker Diagram

Audi 90 1988 Auxiliary Fuse Box/Block Circuit Breaker Diagram



SymbolDescription
1Relay ABS Combination
2Control Unit Seat Belt, Park Light & Amp Radio Warning
3Control Unit Interior Light Delay
4Control Unit A/C
5Blank
6Control Unit Oil Pressure or Front Lamp
7Blank
8Blank
9Circuit Breaker Seat & Amp Windows
10Blank
11Blank
12Blank
13Relay Passenger Heated Seat
14Relay Drive Heated Sat
15Control Unit POwer Window
16Control Unit Power Window
17Blank
18Relay Radiator Cooling Fan After Run

Audi 90 1988 Auxiliary Fuse Panel/Board – Fuse Symbol Map
