Audi A4 Avant Quattro 3000 2004 Fuse Box/Block Circuit Breaker Diagram

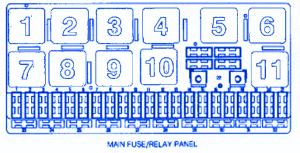

| Relay Symbol | Relay Map |
|---|---|
| 1 | Foglight Relay |
| 2 | Cooling Fan Relay (2nd Speed) |
| 3 | Cooling Fan Control Module Relay |
| 4 | Headlight Washer Relay |
| 5 | Load Reduction Relay |
| 6 | Heater Fan Relay (Main A/C) or Cooling Fan Relay- 2nd Speed (Auto A/C) |
| 7 | Horn Relay |
| 8 | Alarm System Relay (Starter Interlock) |
| 9 | Intermittent Wiper/Washer Relay |
| 10 | Fuel Pump Relay |
| 11 | Cooling Fan Relay |
Audi A4 Avant Quattro 3000 2004 Fuse Panel/Board – Fuse Symbol Map
