Audi A4 Avant Quattro Wagon 3.0 2002 Fuse Box/Block Circuit Breaker Diagram

Audi A4 Avant Quattro Wagon 3.0 2002 Fuse Box / Block Circuit Breaker Diagram

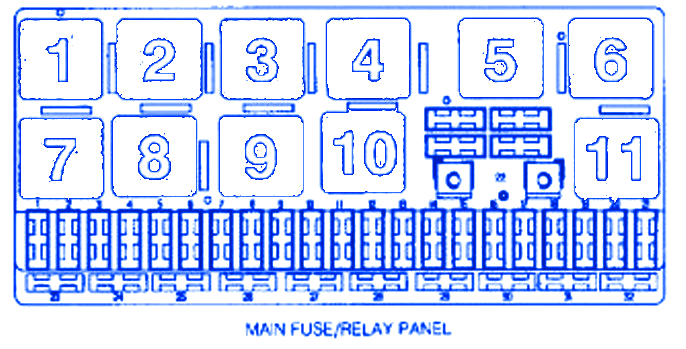

Relay SymbolRelay Map
1Foglight Relay
2Cooling Fan Relay (2nd Speed)
3Cooling Fan Control Module Relay
4Headlight Washer Relay
5Load Reduction Relay
6Heater Fan Relay (Main A/C) or Cooling Fan Relay- 2nd Speed (Auto A/C)
7Horn Relay
8Alarm System Relay (Starter Interlock)
9Intermittent Wiper / Washer Relay
10Fuel Pump Relay
11Cooling Fan Relay

Audi A4 Avant Quattro Wagon 3.0 2002 Fuse Panel / Board – Fuse Symbol Map
