Audi Q5 2008 Fuse Box/Block Circuit Breaker Diagram
| Symbol | Description |
|---|---|
| 1 | Heated Washer Jets |
| 2 | Turn Signal Flasher Unit |
| 3 | Headlight Washer, Illumination of Glove Compartment, Climate Control, Instrument Cluster |
| 4 | License Plate Light |
| 5 | Instrument Cluster, Seat Heating, Test Connection for Cruise Control, Bulb Monitor for Auto Checj Control Switch Lighting, Mirror Switches and Actuators, Airbag Warning light, Outside Temperature indicator, Climate Control |
| 6 | Central Loocking System |
| 7 | Anti-Lock Brake System (ABS) |
| 8 | - |
| 9 | Mirror Heating |
| 10 | Vacant |
| 11 | Vacant (CC-AT0 |
| 12 | OBD System |
| 13 | Brake Lights |
| 14 | Interior Lights, Anti-Theft Alarm System, Vanity Mirror |
| 15 | Instrument Cluster, Power Windows, Climate Control |
| 16 | Vacant (ABS-ASR) |
| 17 | Heated door Locks |
| 18 | High Beam Right |
| 19 | High Beam Left |
| 20 | Low Beam Right |
| 21 | Low Beam Left |
| 22 | Tail and Side Marker Right |
| 23 | Tail and Side Marker Left |
| 24 | Wiper and Washer System |
| 25 | Blower for Heating Climate Control |
| 26 | Rear Window Defogger, Mirror Heating |
| 27 | Vacant (Rear Wiper) |
| 28 | Fuel Pump |
| 29 | Engine Timming |
| 30 | Sun Roof |
| 31 | Tail Lights, Cruise Control |
| 32 | Engine Timming |
| 33 | Cigarette Lighter |
| 34 | Engine Timming |
| 35 | Vacant (Trailer Rec) |
| 36 | Fog Lights |
| 37 | Radio |
| 38 | Luggage Compartment Light, Central Locking |
| 39 | Emergency Flasher |
| 40 | Horn |
| 41 | Vacant (ABS) |
| 42 | Vacant |
| 43 | Vacant |
| 44 | Seat Heating |

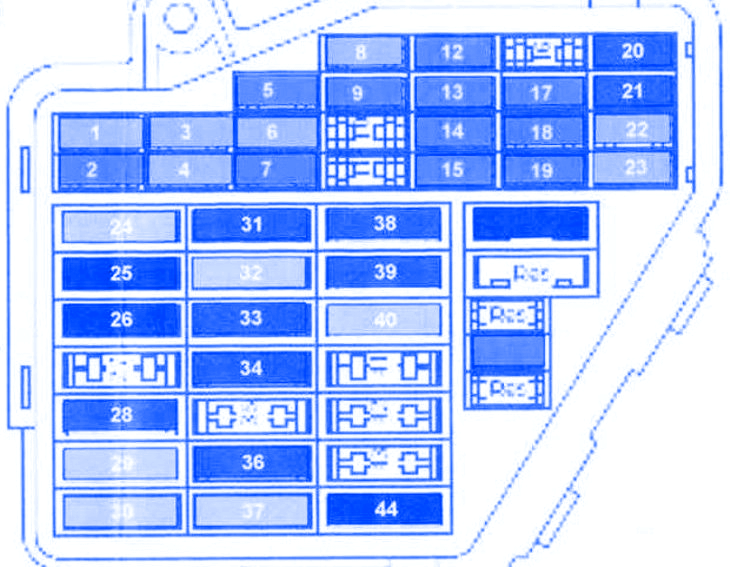

Audi Q5 2008 Fuse Panel/Board – Fuse Symbol Map
