BMW 1973 Fuse Box/Block Circuit Breaker Diagram
| No. | Fuse Element | Item of Electrical Equipment | |
|---|---|---|---|
| 1 | 16A | Red | Cigar Lighter (Automatic Radio Antenna) |
| 2 | 8A | White or Black | Hazard warning Flashers, Interior Light, Clock (Trailer Turn Indicators) |
| 3 | 16A | Red | Heater Rear Window |
| 4 | 16A | Red | Heater blower (electric Sliding Roof) |
| 5 | 16A | Red | Wipers and Windshield Washer, Brake Lights |
| 6 | 8A | White or Black | Turn Indicators, Horn, Reversing Lights (Radio) |
| 7 | 8A | White or Black | Side, Rear and Parking Lights (Left) |
| 8 | 8A | White or Black | Side, Rear and Parking Lights (Right), License Plate Light, Instrument Lighting (Rear Fog Warning Light, Fog Light Relay) |
| 9 | 8A | White or Black | Left Low Beam Headlight |
| 10 | 8A | White or Black | Right Low Beam Headlight |
| 11 | 16A | Red | High Beam Headlights |
| 12 | 8A | White or Black | Automatic Choke, Fuel and Coolant Temperature Gauges, Oil Pressure Telltale Lamp, Revolution Counter, Handbrake Telltale, Choke Knob and Fuel Level (Electric Fuel Pump) |

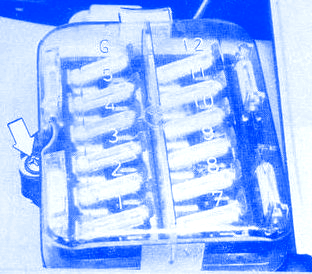

BMW 1973 Fuse Panel/Board – Fuse Symbol Map
