BMW 325i 1994 Fuse Box/Block Circuit Breaker Diagram

BMW 325i 1994 Fuse Box/Block Circuit Breaker Diagram



SymbolDescription
1Fuel Pump Relay
2System (main) Relay
3Oxygen Sensor Heater Relay
4Horn Relay
5Taillight/Foglight Relay
6Low Beam Relay
7High Beam Relay
8Emergency Flasher Relay
9Heater/A/C Blower Relay
10Rear Defogger Relay
11ABS System Relay
12ABS Pump Relay
13High Speed Radiator Fan Relay
14A/C Compressor Relay
15Low Speed Radiator Fan Relay

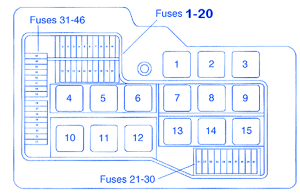

BMW 325i 1994 Fuse Panel/Board – Fuse Symbol Map
