BMW 540i 1993 Engine Fuse Box/Block Circuit Breaker Diagram
| FUSE SYMBOL | FUSE MAP |
|---|---|
| 17 30 | ABS Diesel |
| 30 31 | ABS Gasoline |
| 9 20 | Air Conditioner |
| 40 42 | Airbag |
| 21 | Anti-glare Inside Mirror |
| 8 17 31 | Automatic Stability Control |
| 7 20 22 75 | Auxiliary Fan |
| 41 | Brake Light |
| 6 27 29 | Central Locking sytem |
| 39 | Charging Socket |
| 39 | Courtesy Mirror Illumination |
| 15 38 | Diagnosis Plug |
| 13 21 | Driver Seat Adjustment |
| 32 | Electric Seat Heating |
| 14 15 | Engine Control |
| 31 17 | Fuel Pump |
| 21 | Garage Door Opener |
| 2 | Headlight Cleaning System |
| 20 | Heated Rear Window |
| 34 | Heated Steering Wheel |
| 9 | Heated Washer Jets |
| 20 23 | Heater |
| 76 | Heater Blower |
| 3 38 | Horn |
| 12 37 | Immobilizer |
| 23 | Independent Heater |
| 18 24 40 | Instrument Cluster |
| 16 41 | Light Module |
| 44 | Multi-function Steeering Wheel |
| 25 44 | Multi-information Display |
| 43 56 58 | On-board Monitor |
| 6 29 | Outside Mirror Adjustment |
| 21 | Park-Distance-Control |
| 4 | Passenger Comp/Trunk Lighting |
| 10 | Passenger Seat Adjustment |
| 25 43 44 | Radio |
| 45 | Roller Sun Blind |
| 11 | Servotronic |
| 24 38 | Shifting Gate Illumination |
| 5 | Sliding/Tilt Roof |
| 41 | Speed Control |
| 13 | Steering Column Adjustment |
| 43 44 | Telephone |
| 21 | Thermal Sensor |
| 24 | Tyre Pressure Control System |
| 6 27 29 | Window Lift |
| 4 2 | Windscreen Washer System |
| 1 | Windscreen Wiper |

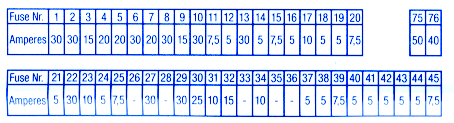

BMW 540i 1993 Engine Fuse Panel/Board – Fuse Symbol Map
