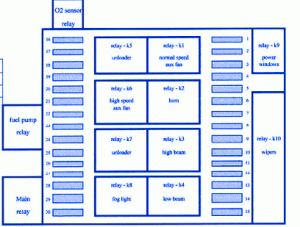

BMW 635CSi 1988 Engine Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Amps | Fuse Map |
|---|---|---|
| 1 | 7.5A | Left High Beam, Right Low Beam |
| 2 | 7.5A | Right High Beam, Left Low Beam |
| 3 | 30A | Auxiliary Fan 196 deg.F (91 deg Cent) |
| 4 | 15A | Turn Signal |
| 5 | 30A | Windshield Wiper & Washer, Intensive Cleaner |
| 6 | 7.5A | Brake Light, Cruise Control |
| 7 | 15A | Horn |
| 8 | - | Empty |
| 9 | 7.5A | Diagnostic Plug, Backup Light |
| 10 | 7.5A | Instruments, On-Board Computer, Auxiliary Fan 210deg.F (99 deg.Ce) |
| 11 | 15A | Main and Auxiliary Fuel Pump |
| 12 | 7.5A | Radio, Check Control, Instruments, On-Board Computer |
| 13 | 7.5A | Left Low Beam |
| 14 | 7.5A | Right Low Beam |
| 15 | - | Empty |
| 16 | 30A | Blower Air Condition |
| 17 | 30A | Power Outside Mirrors, Mirror Heating, A/C Fasten Seatbelt Light |
| 18 | 30A | Aux. Fan 210 deg F (99 deg C) |
| 19 | 30A | Power Sliding Roof, Heated Seats |
| 20 | 30A | Rear Window Defroster |
| 21 | 7.5A | Interior Lights, Radio, Glove Box, Recharg, Flashlight, OBC, Radio Memory, Instruments |
| 22 | 7.5A | Left Side Lights |
| 23 | 7.5A | Right Side Lights, Engine Compart, Light, Plate Light, Instrument Panel Light,Make-up Mirror Light |
| 24 | 15A | Hazard Warning Flashers, Open Door Buzzer |
| 25 | - | Empty |
| 26 | 30A | Seat Adjustment |
| 27 | 30A | Central Locking System, Door Lock,Heating, Anti-Theft OBC |
| 28 | 30A | Lighters, Power Antenna |
| 29 | 7.5A | Left Fog Light |
| 30 | 7.5A | Right Fog Light |
BMW 635CSi 1988 Engine Fuse Panel/Board – Fuse Symbol Map
