BMW Cibie CSR 1988 Main Fuse Box/Block Circuit Breaker Diagram
| Fuse No. | Current(A) | Description |
|---|---|---|
| 1 | 7.5A | Left High Beam, Right Low Beam |
| 2 | 7.5A | Right High Beam, Left Low Beam |
| 3 | 30A(25A) | Auxiliary Fan 91C (196F) |
| 4 | 15A | Turn Signals |
| 5 | 30A(25A) | Windshield Wipers and Washer, Intensive Cleaner |
| 6 | 7.5A | Brake Light, Cruise Control |
| 7 | 15A | Horn |
| 8 | - | Without Connection |
| 9 | 7.5A | Engine Electrical Equipment, Backup Light |
| 10 | 7.5A | Intruments, On-Board Computer |
| 11 | 15A | Main and Aux, Fuel Pumps |
| 12 | 7.5A | Radio, Check Control, Instruments, On-Board Computer |
| 13 | 7.5A | Left Low Beam |
| 14 | 7.5A | Right Low Beam |
| 15 | 7.5A | Without Connection |
| 16 | 30A | Heater Blower |
| 17 | 30A(25A) | Backup Light, Outside Power Mirrors, Mirror Heating, Air Conditioner fasten Seat Belt Sign, Power Seat Memory |
| 18 | 30A | Auxiliary Fan 99C (210F) |
| 19 | 30A | Power Sliding Roof, Heated Seat |
| 20 | 30A(25A) | Rear Window Defogger |
| 21 | 7.5A | Interior Lights, Radio, Glove Box, Rechargeble Flashlight, On-Board Computer, Radio, Memory, Instruments |
| 22 | 7.5A | Left Side Lights |
| 23 | 7.5A | Right Side Lights, Engine Compartment Light, License Plate Lights, Instrument Panel Lights, Make-Up Mirror Light |
| 24 | 15A | Hazard Warning Light Flashers, Open Door Buzzer |
| 25 | 30A(25A) | Without Connection |
| 26 | 30A(25A) | Power Seats |
| 27 | 30A(25A) | Central Locking System, Door Lock Heating, Burglar Alarm System, On-Board Computer |
| 28 | 30A(25A) | Lighters, Power Antenna, Parked Car Heater, Booster |
| 29 | 7.5A | Left Fog Light |
| 30 | 7.5A | Right Fog Light |

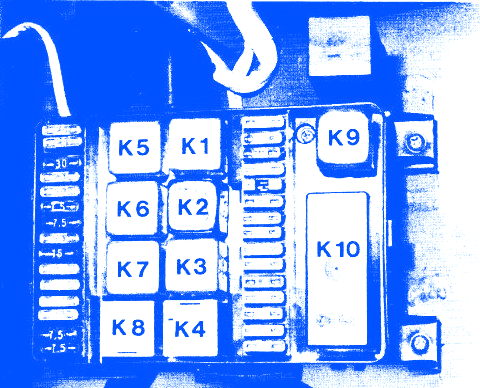

BMW Cibie CSR 1988 Main Fuse Panel/Board – Fuse Symbol Map
