BMW E36 325i 1991 Pin Out Fuse Box/Block Circuit Breaker Diagram
| Equipment | Fuse |
|---|---|
| Climate Control and Heating, Anti-ice: | |
| Air Conditioning | 16,20,23,31,39 |
| Door Lock Heating | 33 |
| Front Seat Heating | 4,23 |
| Heated Washer Jets | 24 |
| Heater Blower | 20 |
| Heater Control | 23 |
| Independent Ventilation | 20 |
| Rear Window Heating | 6,23 |
| Engine and Powertraint: | |
| Automatic Transmission | 28 |
| Auxiliary Fan | 16,41 |
| Fuel Pump | 18 |
| Instruments, Controls and Comfort: | |
| Check Control | 45 |
| Cruise Control | 46 |
| Clock | 31 |
| Headlight Level Control | 37 |
| Instrument Cluster | 23,27,31,46 |
| On-board and Outside Temperature Displays | 23,31,45 |
| On-board Computer | 23,45 |
| Radio | 9,44 |
| Seat Adjustment, Driver | 40 |
| Seat Adjustment, Pasngr | 5 |
| Side-View Mirror Adj | 24 |
| Soft-top | 7,35,43 |
| Sun Roof | 1 |
| Telephone | 33,43 |
| Lighting, Exterior: | |
| Brake Light | 46 |
| Front Fog Lights | 15,22 |
| Hazard Warning Flashers and Turn Signals | 23,24 |
| Headlight Flasher | 23 |
| High-beam, Left | 11,25 |
| High-beam, Right | 12,25 |
| License Plate Light | 37 |
| Low-beam, Left | 25,29 |
| Low-beam, Right | 25,30 |
| Parking Light | 33 |
| Rear Fog Lights | 17,22 |
| Reversing Light | 26 |
| Side Light, Left | 33 |
| Side Light, Right | 37 |
| Lighting, Interior: | |
| Engine Compartment | 37 |
| Control and Instrument Cluster | 22,26,37 |
| Glove Box | 44 |
| Glove Box (Convertible) Interior and Luggage Compartment | 33 |
| Make-Up Mirror | 43 |
| Reading Light | 43 |
| Reading Light (Convertible) | 33 |
| Safety and Locking: | |
| ABS, ASC | 10,21,38 |
| Airbag, Driver | 42 |
| Airbag, Passenger | 42,43 |
| Central Locking System | 7,35,43 |
| Infrared | 7,43 |
| Parking Sensors | 24 |
| Roll-over Protection System | 7,35,42,43 |
| Wipers, Window and Washing: | |
| Electric Front Windows | 14 |
| Electric Rear Windows | 19 |
| Headlight Cleaning System | 3,37 |
| Rear Wiper | 3 |
| Vent Window | 13 |
| Wipe-wash System | 36,44,45 |
| Other: | |
| Charging Socket | 33 |
| Cigarette Lighter | 32 |
| Horn | 8 |
| Trailer | 2 |

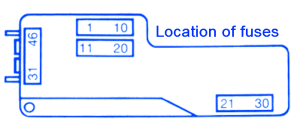

BMW E36 325i 1991 Pin Out Fuse Panel/Board – Fuse Symbol Map
